Home / Products / Metal Chamfering Machine
Metal Surface Finishing

Metal Chamfering Machine – MDC Series

The same MD-Series deburring platform, fitted with a universal chamfer wheel head that puts a consistent edge round on both sides of a cut plate -- with an optional wire-drawing wheel added for a brushed finish in the same pass.

Request Quote & Spec Sheet WhatsApp Engineer
MDCSeries
Built on Our MD-Series Platform
Universal
Chamfer Wheel, Standard Equipped
Optional
Wire-Drawing Wheel Add-On
CE
Certified, EU Rep on File

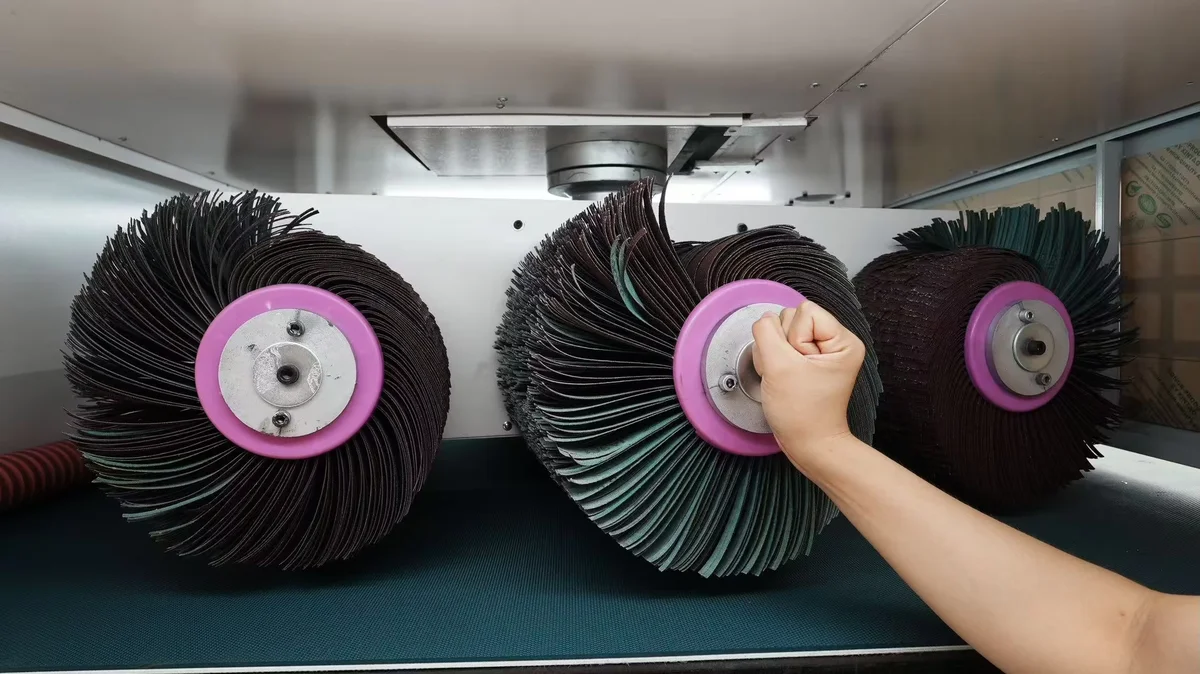

Close-up of the universal chamfer wheel flap-wheel assembly on the MDC series machine

Not a Separate Machine -- a Head Configuration

A dedicated chamfering machine is a real product category, but ours isn't built as a separate platform from scratch. The MDC series is the same conveyor, frame, and digital control system used on our MD-Series deburring and wire-drawing line, fitted with a universal chamfer-wheel head station in place of (or alongside) the standard deburring heads.

01 / HEAD STATION

Universal Wheel Assembly

Flap-wheel stations round both top edges of the plate as it passes through -- replacing a hand-held angle grinder pass on every cut piece.

02 / OPTIONAL ADD-ON

Combined With Wire-Drawing

A wire-drawing wheel station can be added in the same line, so a plate exits with both a rounded edge and a brushed surface finish in one pass.

03 / RECONFIGURABLE

Multiple Head Layouts

The roller-head assembly supports several configurations depending on which combination of deburring, chamfering, and wire-drawing stations your work requires.

Inside the Universal Wheel Head

Interchangeable flap-wheel stations, viewed from inside the cabinet access door, with the general processing sequence shown alongside.

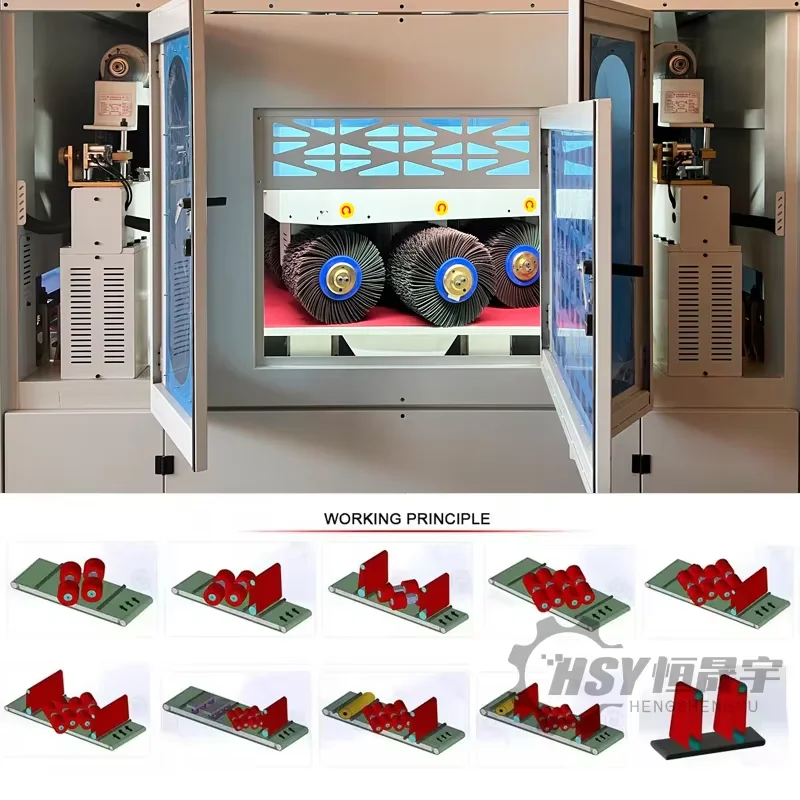

Interior view of the universal wheel head station showing flap wheels and working-principle configuration diagrams

Universal wheel head station, interior access-door view

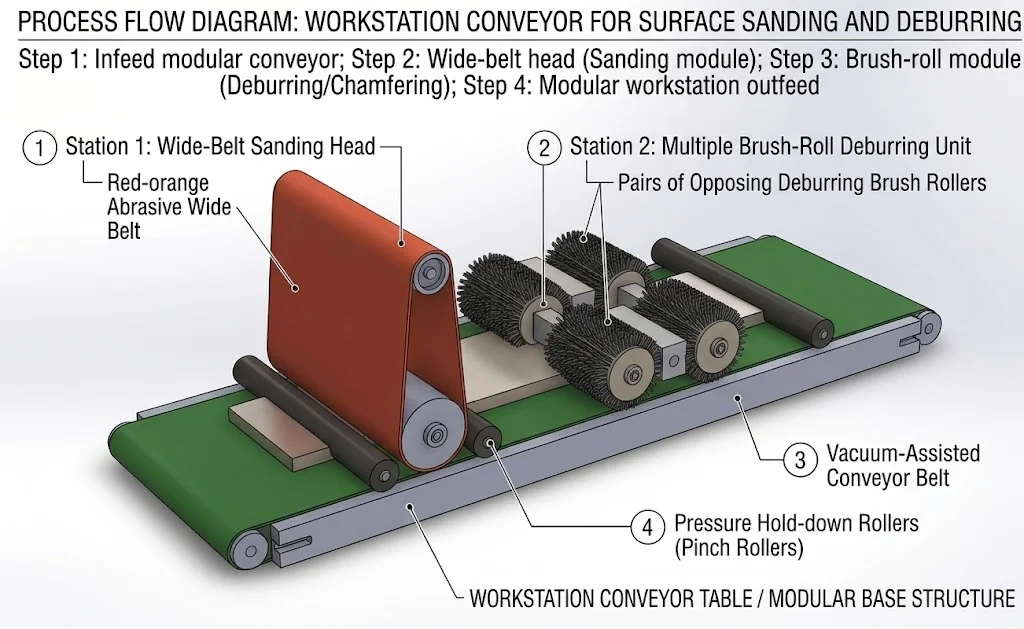

Process flow diagram: infeed conveyor, wide-belt sanding head, brush-roll deburring/chamfering unit, pressure hold-down rollers, and outfeed

Process flow: infeed → wide-belt head → brush-roll unit → outfeed

Model Comparison & Specifications

The universal wheel head is standard equipment across all five MDC widths, with the wire-drawing wheel available as an add-on.

ModelMDC400MDC600MDC800MDC1000MDC1300
Power11.55 kW15.75 kW15.75 kW23.75 kW30.75 kW
Working Width380mm580mm780mm980mm1280mm
Workpiece Thickness1–100mm
Universal WheelStandard equipped, all widths
Wire-Drawing WheelOptional add-on, all widths
Feed Speed1–10 m/min
Machine Weight500 kg600 kg850 kg950 kg1,100 kg
Dimensions (L×W×H)1250×800×1750mm1250×1010×1750mm1250×1310×1750mm1250×1510×1800mm1410×1810×1800mm
MDC400
Power11.55 kW
Working Width380mm
Workpiece Thickness1–100mm
Universal WheelStandard equipped, all widths
Wire-Drawing WheelOptional add-on, all widths
Feed Speed1–10 m/min
Machine Weight500 kg
Dimensions (L×W×H)1250×800×1750mm
MDC600
Power15.75 kW
Working Width580mm
Workpiece Thickness1–100mm
Universal WheelStandard equipped, all widths
Wire-Drawing WheelOptional add-on, all widths
Feed Speed1–10 m/min
Machine Weight600 kg
Dimensions (L×W×H)1250×1010×1750mm
MDC800
Power15.75 kW
Working Width780mm
Workpiece Thickness1–100mm
Universal WheelStandard equipped, all widths
Wire-Drawing WheelOptional add-on, all widths
Feed Speed1–10 m/min
Machine Weight850 kg
Dimensions (L×W×H)1250×1310×1750mm
MDC1000
Power23.75 kW
Working Width980mm
Workpiece Thickness1–100mm
Universal WheelStandard equipped, all widths
Wire-Drawing WheelOptional add-on, all widths
Feed Speed1–10 m/min
Machine Weight950 kg
Dimensions (L×W×H)1250×1510×1800mm
MDC1300
Power30.75 kW
Working Width1280mm
Workpiece Thickness1–100mm
Universal WheelStandard equipped, all widths
Wire-Drawing WheelOptional add-on, all widths
Feed Speed1–10 m/min
Machine Weight1,100 kg
Dimensions (L×W×H)1410×1810×1800mm

Quick Specifications

Working Width200mm – 1800mm, custom at order
Voltage110V / 220V / 380V
Processing ModesEdge chamfering, optional wire-drawing/brushed finish
MaterialsCarbon steel, stainless steel, aluminum
Head ConfigurationUniversal chamfer wheel, optional wire-drawing wheel
Control SystemDigital touchscreen, recipe storage
Dust ExtractionIntegrated, connects to shop vacuum system
CertificationCE, EU representative on file
CustomizationCabinet color, control-panel branding/logo

Certified for Export

Every unit ships with CE documentation and an EU-representative declaration on file, alongside our own industry manufacturing certification.

CE Certificate
EU Representative on File
Industry Manufacturing Certification

Frequently Asked Questions

Is the MDC a different machine from the MD deburring line, or an option on it?

Same platform -- conveyor, frame, and control system are identical. The universal wheel head is what defines the MDC configuration, specified at order rather than built on a different base.

Can I get chamfering and wire-drawing on the same plate in one pass?

Yes -- add the wire-drawing wheel alongside the universal wheel and the plate exits with both a rounded edge and a brushed surface finish without a second pass through a separate machine.

Do I need to buy a new machine if I already own an MD-Series unit?

Depending on your unit's head-station layout, a universal wheel may be addable as a retrofit. Tell us your existing model and we'll confirm whether a field upgrade is possible.

What edge profile does the universal wheel produce?

A rounded edge break rather than a sharp flat bevel -- suited to safe handling, coating adhesion, and general edge-safety requirements rather than a structural weld-prep bevel.

Which width should I choose?

Match it to your most common plate width, not your largest occasional job -- our engineers can help size this once you share your typical production mix.
