The 8-axis CNC plasma cutting machine is a 3D profiling platform built to handle the geometry a flat 2D cutter simply can't reach — box profiling, beam profiling and intricate pipe profiling on the same station. The extra axes give the torch full access around the workpiece, so bevels, slots and intersection holes come off the machine ready for fit-up.
An intuitive Windows-based control system turns engineering drawings directly into CNC code, cutting out the manual programming step and keeping throughput high on repetitive structural runs — shipbuilding sections, bridge girders, or architectural steel alike.
Robotic 3D Execution
The integrated robotic arm reaches 360° around structural components, delivering flawless bevel cuts and intersection holes without secondary manual finishing — a real time saving once you multiply it across a production run.
Operational Efficiency
High-speed positioning and intelligent nesting software keep material usage tight, while direct file import from common CAD platforms keeps the path from design to metal short and error-free.
Model & Capacity Selection
Typical Applications
This class of machine typically slots into the front end of a structural steel fabrication line, right after raw profile intake and before fit-up and welding.
- Bridge girders and highway overpass steel
- High-rise and commercial building steel frames
- Pre-engineered metal building (PEMB) components
- Industrial platform and pipe rack structures

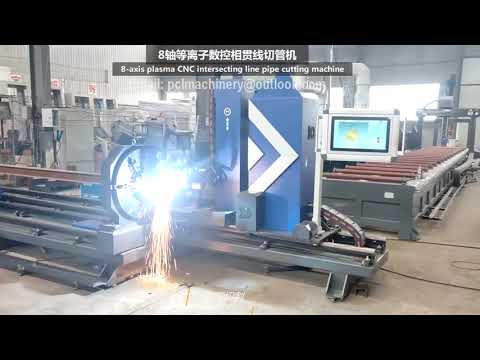

Machine In Operation
